aluminum diamond plate

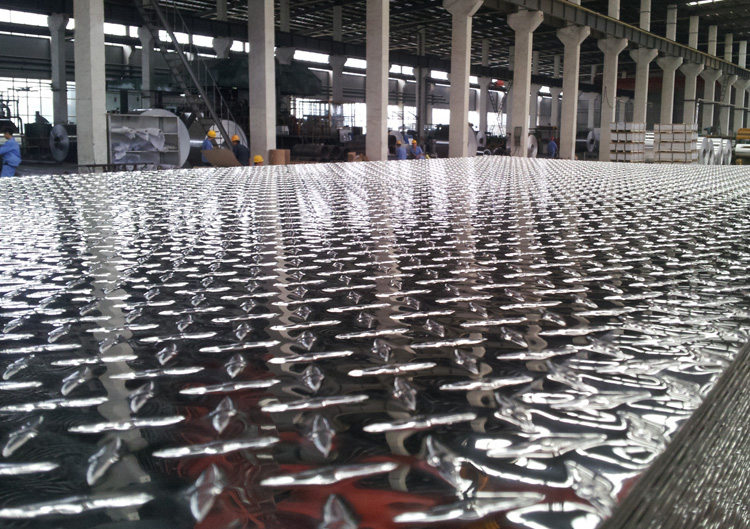

Aluminum diamond plate, sometimes called aluminum tread plate, aluminum floor plate, or aluminum checker plate,is available in two different alloys. the 3003-H14 has shiny bright finish, corrosion resistant and is softer and more formable, and popular for decorative metal working - while 6061 is less corrosion resistant it is stronger than 3003. Both offer anti-slip floor surfaces. .The 6061-T6 alloy can have a dull or shiny finish and is harder and more durable, Aluminum diamond plate is commonly seen on fire trucks and truck toolboxes.
Sizes range for aluminium diamond plate
| Alloy | Temper | Size range (mm) | ||
| Thickness | Width | Length | ||
| 1050A, 1200 | F | 1.5-2.4 | 800-1500 | 1000-6000 |
| 2.0-6.0 | 800-1500 | 1000-8000 | ||
| F, H114 | 1.5-2.0 | 900-1600 | 1000-4000 | |
| 2.0-8.0 | 900-2000 | 1000-9000 | ||
| 5251, 5052, 5754 | H114, H224 | 1.5-2.4 | 800-1500 | 1000-6000 |
| 2.4-6.0 | 800-1500 | 1000-8000 | ||
| F, H114,H224 | 1.5-2.0 | 900-1600 | 700-4000 | |
| 2.0-7.0 | 900-2000 | 1000-9000 | ||
| F, H114 | 7.0-8.0 | 900-2000 | 1000-9000 | |
| 5154A | F, H114 | 2.0-6.0 | 900-1600 | 1000-9000 |
| 5086,5083 | F, H114, H224, H116 | 2.0-6.0 | 900-1600 | 1000-9000 |
| 6061, 6082 | F, 0, T4, T6 | 1.5-2.0 | 900-1250 | 700-4000 |
| 2.0-3.5 | 900-1600 | 1000-4000 | ||
| F, 0 | 2.0-3.5 | 1600-2000 | 1000-4000 | |
| F, 0, T4, T6 | 3.5-4.83 | 900-1250 | 1000-4000 | |
| 3.5-4.83 | 1250-2000 | 1000-4000 | ||
| F, 0 | 4.83-6.35 | 900-2000 | 1000-4000 | |
| 3003 | H224 | 1.5-2.0 | 800-1524 | 1000-4000 |
| 2.0-2.4 | 800-1524 | 1000-6000 | ||
| 2.4-6.35 | 800-1524 | 1000-8000 |
Sizes range for aluminium tread coil
| Alloy | Temper | Size range (mm) | |||
| Thickness | Width | Diameter | |||
| Inside | Outside | ||||
| 5251, 5052, 5754 | H114, H224 | 1.5-3.0 | 800-1500 | 500, 610 | Max.1600 |
| 3.0-6.0 | 800-1500 | 750 | Max.1600 | ||
| F, H114, H224 | 3.0-7.0 | 1250-2000 | 600 | Max.1800 | |
| F, H114 | 7.0-8.0 | 1250-2000 | 600 | Max.1800 | |
| 5154A, 5086, 5083 | F, H114 | 3.0-6.0 | 1250-2000 | 600 | Max.1800 |
| 1050A, 1200, 3003 | F, H114 | 3.0-8.0 | 1250-2000 | 600 | Max.1800 |
| 3003 | H224 | 1.42-3.1 | 800-1524 | 500, 610 | Max.1600 |
Chemical Properties(WT.%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | impurities | Al | note |
| 1050 | <0.25 | <0.40 | <0.05 | <0.05 | <0.05 | <0.05 | <0.03 | Other, each 0.03 | >99.5 | V<0.05 | |
| 1060 | <0.25 | <0.35 | <0.05 | <0.03 | <0.03 | <0.05 | <0.03 | Other, each 0.03 | >99.6 | V<0.05 | |
| 1070 | <0.20 | <0.25 | <0.04 | 0.03 | 0.03 | 0.04 | 0.03 | Other, each 0.03 | >99.7 | V<0.05 | |
| 1100 | Si +Fe <0.95 | 0.05-0.20 | <0.05 | <0.10 | Other, each 0.03 | >99.00 | V<0.05 | ||||
| 3003=АМц | <0.6 | <0.7 | 0.05-0.20 | 1.0-1.5 | <0.10 | Other,each 0.05, total 0.15 | |||||
| 3004 | <0.30 | <0.7 | <0.25 | 1.0-1.5 | 0.8-1.3 | <0.25 | Other,each 0.05, total 0.15 | ||||
| 3105 | <0.6 | <0.7 | <0.30 | 0.30-0.8 | 0.20-0.8 | <0.20 | <0.4 | <0.10 | Other,each 0.05, total 0.15 | ||
| 5052=АМг2.5 | <0.25 | <0.40 | <0.10 | <0.10 | 2.2-2.8 | 0.15-0.35 | <0.10 | Other,each 0.05, total 0.15 | |||
| 5083=АМг4.5 | <0.40 | <0.40 | <0.10 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | <0.25 | <0.15 | Other,each 0.05, total 0.15 | ||
| 6061=АД33 | 0.40-0.8 | <0.7 | 0.15-0.40 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | Other,each 0.05, total 0.15 |
